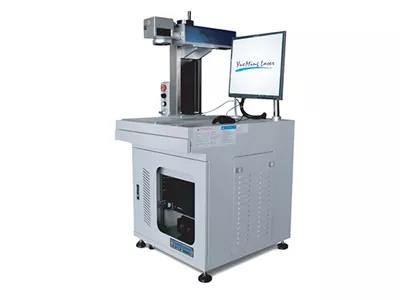

Fiber Econimical
Fiber Econimical
  1. undefined
  2. undefined
  • HIGH SPEED GLAVANOMETER SCANNER. All-digital drive and scanning motor, low zero drift for long working, long-term stability with fine marking effect.
  • HEIGHT ADJUSTABLE WORK PLATFORM. Maximize the realization of the work demands and different sizes.
  • USER-FRIENDLY CONTROL PANEL. Built-in safety emergency stop button ensures the safety of production. High-quality electrical components improve the system stability for long-term working.
  • WORK PLATFORM. Mounting holes evenly, can adapt to different positioning of the workpiece. Different tables are available for different demands.
  • COOLING DESIGN. Efficient cooling equipment designed to enhance stability.
  • SMARTSCANNER SOFTWARE SYSTEM. Self-owned Intellectual property, simple operation, compatible with multiple languages, free updates.
Category: .
Share:
Model MF20-E/10E
Wavelength 1.06m
Spot <1.2M2
Power 20W/10W
Pulse Frequency 20-80KHz
Cooling Method Air Cooling
Marking Area 110mm x 110mm /175mm X 175mm
Focal Length 163mm /254mm
Working Distance 184mm / 288mm
Minimum Line Width 0.02mm
Minimum Character 0.2mm
Marking Speed 0~7000mm/s
Graphic Format BMP, PLT, AI, DXF, ETC
Voltage AC220 ±10%
Frequency 50/60Hz
Dimension 750mm x 600mm x 1270mm
Weight Approx. 80kg
Working Environment Clean, Dust-free
Temperature 10~35°C
Humidity 75% (No Condensation)
Gross Power 1KW
Safety Protection Class IP54
Laser Safety Class 4

Applications

ECONOMICAL FIBER LASER MARKING Application Phone Case Engraving ECONOMICAL FIBER LASER MARKING Application Machine Parts Marking ECONOMICAL FIBER LASER MARKING Application Jewelry Marking ECONOMICAL FIBER LASER MARKING Application Clock Shelll Marking ECONOMICAL FIBER LASER MARKING Application Tools Marking
