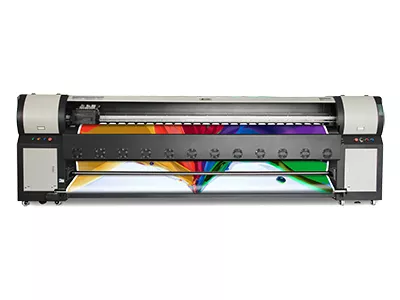

Apollo Max
Apollo Max
Advanced High Precision Technology Upgraded Control System Ergonomically Designed

  • Apollo PZN 3204 inkjet printer is a popular model in the Apollo family. Maximum resolution reaches up to 360 x 1440dpi with a 3.2 printing width.
  • Branded linear guide and servo motor enables high quality print.
  • The three-optical fiber high speed data transmission system of LIYU New Vision is independently researched and developed. Guaranteed machine quality and after-sales service.
  • For higher security, the strong and weak currents are located separately.
  • Can directly upgrade from 4 heads to 8 heads.
  • The Auto Positive Pressure and Head Auto Cleaning System significantly reduce the time and process of head maintenance.
  • Has a newly designed carriage and has a double head filtration capability which ensures the lifespan of the printhead.
  • The independent LIYU control software with bi-direction and feather printing functions saves time and improves the quality of printing.
Category: .
Share:
Model PZN 3204
Print Tech Piezo Continuous Drop-On Demand (DOD)
Print head 4 x KM512i
Max. Resolution 360 x 1440 dpi/720x1080dpi
Media Type Banner / Vinyl / Sticker / Coating Film / Mesh
Media Transmission Roll to Roll
Heating System 2 Sections of Pre & Post-Heating System
Interface CMYK
Printing Speed Draft 409 sqft/h
Production 290 sqft/h
High 140 sqft/h
USB Type USB 2.0
Auto. Take-Up Equipped
Auto. Feeding System Equipped
Packing Size (L×W×H) 4.80m x 8.10m x 1.06m
Gross Weight 530kg
Power Requirement 220V±10% > 10A 50Hz
Power Requirement 220V±10% > 10A 60Hz
Environment Temperature: 20°C ~ 25°C
Humidity: 40%°C ~ 70% RH

Applications

Apollo Max Application billboards Apollo Max Application drop down banner Apollo Max Application mobile billboards Apollo Max Application panaflex Apollo Max Application waiting sheds
